CDA 90cm Curved Glass Island Cooker Hood – Stainless Steel
£349.00
- Push button control
- 3 Speeds
- Ducted or re-circulating installation
- 4 x 2W LED lights
- Aluminium grease filter
- Curved glass canopy
- 387m³/h extraction rate ideal for mid size kitchens
- Maximum noise rate 61dB similar to a normal conversation
The CDA ECPK91SS is an excellent focal point for any kitchen island. The extractor has 3 speeds and push button control with 4 LED lights for optimal illumination.
Features:
- Ducted or re-circulating installation
- 3 speeds
- Push button controls
- Curved glass canopy
- 4 LED lights
- Aluminium grease filters
- Energy rating: D
Extraction Rates
- Extraction rate at third speed: 387 m³/hr
- Extraction rate at second speed: 322 m³/hr
- Extraction rate at first speed: 224 m³/hr
Noise Levels
- Noise level at third speed: 61 dBA
- Noise level at second speed: 56 dBA
- Noise level at first speed: 50 dBA
Lighting
- 4 LED Lights
Filters
- 1 Grease filters
- 1 Charcoal filters required if re-circulating (optional)
- Charcoal filter code: CHA12
Technical Specifications
- Required height over gas hob: 650mm
- Required height over electric hob: 600mm
- Outlet diameter: 150 mm with a 120 mm reducer
Dimensions & Specs
| General information | |
| Brand | CDA |
| Cooker Hood Type | Island Hoods |
| Colour | Stainless steel |
| Air Extraction Type | Ducted/Recirculating |
| Control Type | Push Button Control |
| Number of lights | 4 |
| Type Of Light Used | LED |
| Grease Filter Included | yes |
| Grease filter material | Aluminium |
| Warranty | 2 years labour/5 years parts |
| Performance | |
| Speed Settings | 3 |
| Minimum Extraction Rate | 224m³/h |
| Maximum Extraction Rate | 387m³/h |
| Maximum Noise Level | 61dB |
| Annual energy consumption | 64kWh/a |

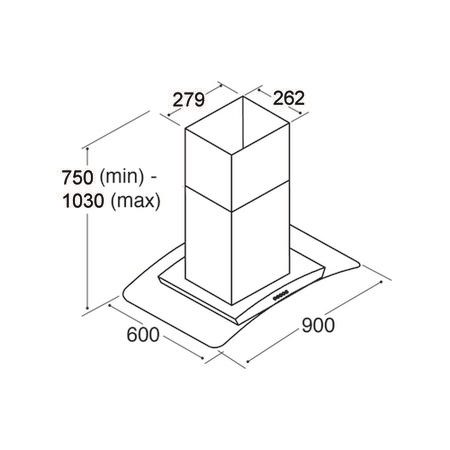

| Dimensions & Weight | |
| Height | 103cm |
| Width | 90cm |
| Depth | 60cm |
| Weight | 22.0kg |
| Chimney Width | 279mm |
| Chimney Depth | 262mm |
| Minimum Height | 750mm |
| Maximum height | 1030mm |
| Diameter of Air Outlet | 150mm |
| Efficiency Information | |
| Energy Rating | D |
| Fluid dynamic efficiency class | E |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Installation | |
| Vent Location | Top |
| Plug type | None |
| Connected load | 108W |
